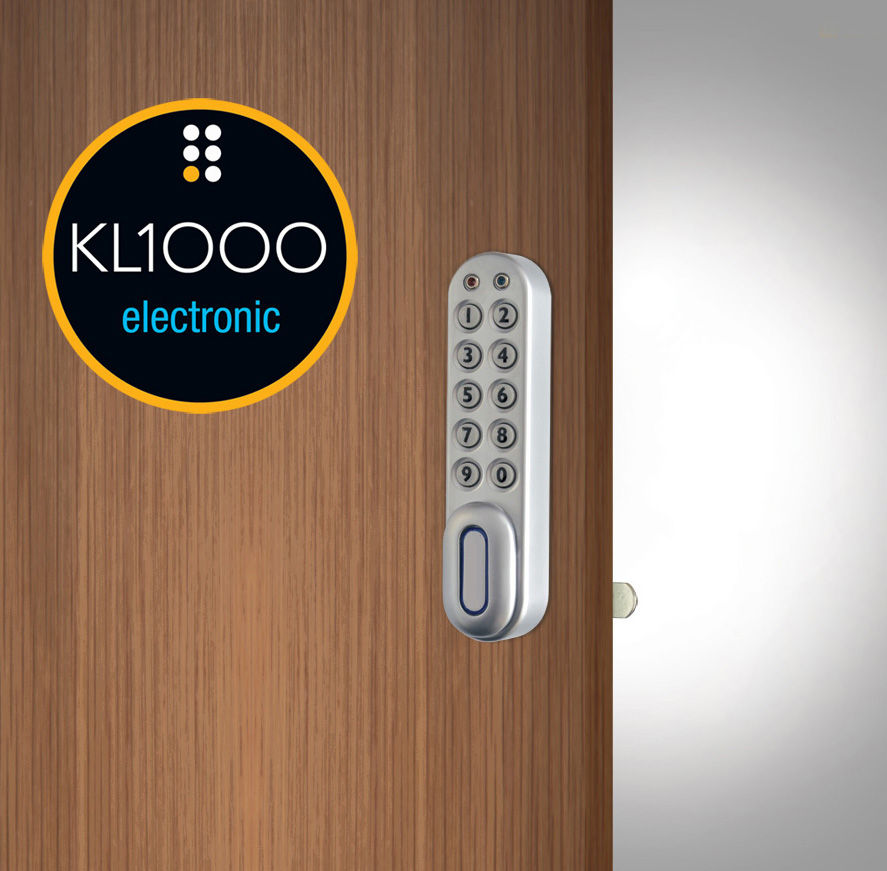

KL1000 electronic
KitLock 1000 are a quick retrofit for keyed cam locks supplied as standard on a wide range of lockers, cabinets and cupboards. The keyless locks are easy to fit, taking just a few minutes to remove the existing cam lock and then making an additional top fixing for the new lock.
Technical Specifications
| Power | 2 x 1.5 AAA Batteries |
| Operations | 15,000 openings |
| Low Battery | When lock signals “Low Battery” there will be 100 additional openings |
| Memory | Non-Volatile memory will be retained when changing batteries |
| Battery Override | A 9volt battery can be placed against external contacts |
| Material | Zinc Alloy |
| Door thickness |
1/16” (1.5mm) up to 1” (25mm) |
| Buttons | 11 individual round buttons |
| Functions |
Private or Public |
| Fitting | Easy fit |
| Fitting Options | Vertical, right and left hand models |
| Finish | Silver grey and black (colour options available) |
| Codes |
KitLock has 4 code levels; |
Codes
The lock is supplied with two factory preset codes.
Master Code: 11 33 55 77
User Code: 22 44
Change both codes after lock has been installed.
All Master Codes 8 digits long
All User Codes are 4 digits long
Functions
Private Use:
This is the default function and is already pre-programmed in new locks. This is the most common function and is used where the same code will be repeatedly used.
Public Use:
The user enters their own personal four-digit code once. This locks the lock. The same code is entered once only to open the lock before being erased and ready for the next new user.
This function is used for short term, multi occupancy applications, e.g. a locker in a leisure centre.

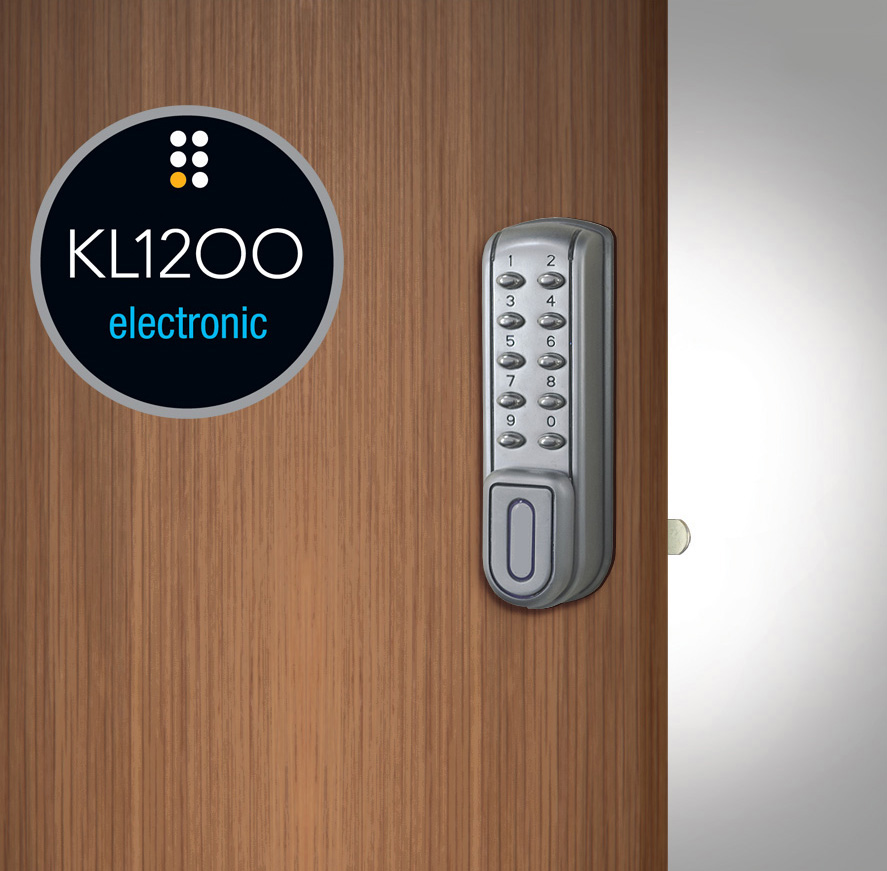

KL1200 electronic
All the benefits of the KL1000 but tougher and more robust for challenging environments. With additional programming features, stainless steel buttons, dual fixing points and improved number of operations, the KL1200 provides enhanced benefits to facilities managers looking to simplify access control without the need for keys.
Technical Specifications
| Power | 2 x 1.5 AAA Batteries |
| Operations | 50,000 openings |
| Low Battery | When lock signals “Low Battery” there will be 100 additional openings |
| Memory |
Non Volatile memory will be retained |
| Battery Override | A 9volt battery can be placed against external contacts |
| Material | Zinc Alloy |
| Door thickness |
1/16” (1.5mm) up to 1” (25mm) |
| Buttons | 11 stainless steel buttons with audible press |
| Functions |
Private or Public |
| Fitting | Easy fit |
| Fitting Options | Vertical and right hand models |
| Cam Fixing Point | 8mm (5/16”) square |
| Finish | Silver grey |
| Accessories available | Slam latch |
| Auto-unlock feature |
Can be programmed via the Master Code to auto open after a preset time, 2, 4, 6, 8, 12 hours (public function only). |
| Codes |
KitLock has 4 code levels; |
Codes
The lock is supplied with two factory preset codes.
Master Code: 11 33 55 77
User Code: 22 44
Change both codes after lock has been installed.
All Master Codes 8 digits long
All User Codes are 4 digits long
Functions
Private Function:
This is the most common function and used where the same code will be repeatedly used, e.g a pupil in a school or an employee with the same locker in the workplace.
Public Function:
The KitLock operates with a single user code. The guest enters a personal four-digit code twice, the second time to confirm the correct code. This locks the lock. The same code is entered once only to open the lock before being erased and ready for the next user. This function is used for short term, multi occupancy applications, e.g a locker in a leisure centre.

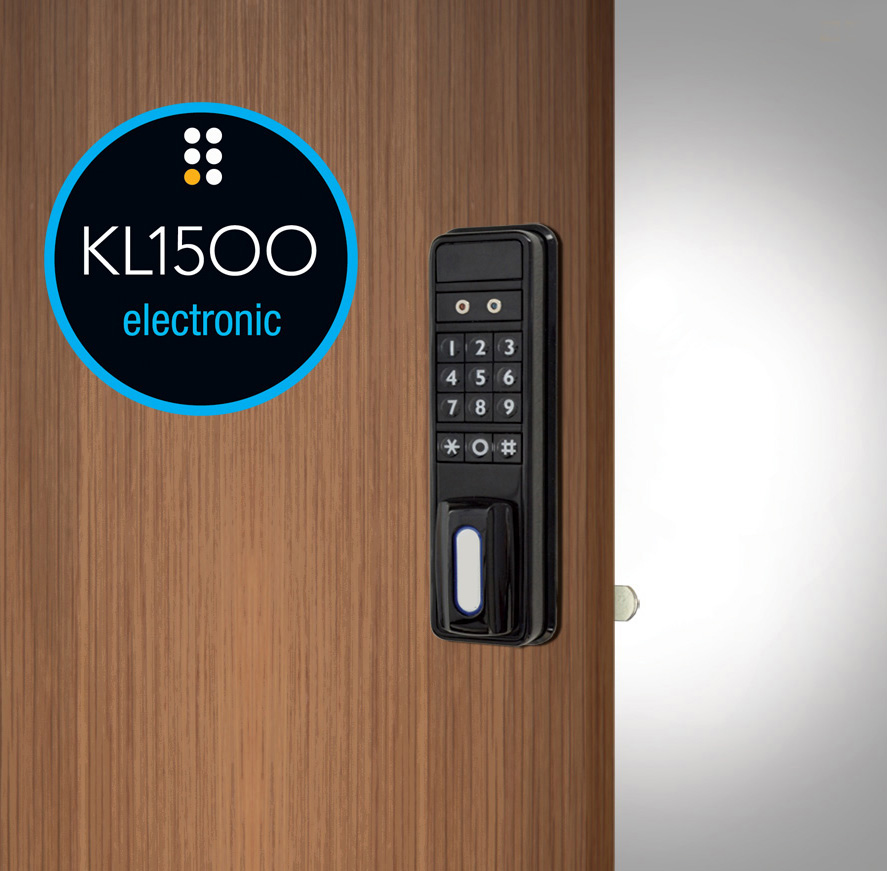

KL1500 electronic
KL1500 is the latest product to join the KitLock range of digital locks replacing keys on lockers, cabinet & cupboards. With a ‘real time’ clock the KL1500 can be programmed to open at a specific time of day. The lock allows for multiple user codes to be entered and can be programmed so two codes are required to open the lock.
Technical Specifications
| Power | 2 x coin cell batteries |
| Operations | 50,000 openings |
| Low Battery | When lock signals “Low Battery” there will be 100 additional openings |
| Battery Override | A 9volt battery can be placed against external contacts |
| Material | Zinc Alloy |
| Door thickness |
1/4” (6mm) up to 1” (25mm) |
| Buttons | 12 individual buttons with audible press |
| Functions |
Private or Public |
| Fitting | New or retrofit |
| Fitting Options | Can be fitted in any orientation |
| Finish | Black |
| Accessories available | Slam latch, iButton |
| Auto-unlock feature |
Can be programmed via the Master Code to auto open after a preset time, 2, 4, 6, 8, 12 hours (public function only) |
| Codes |
KitLock has 4 code levels; |
Codes
The lock is supplied with two factory preset codes.
Master Code: 11 33 55 77
User Code: 22 44
Change both codes after lock has been installed.
All Master Codes 8 digits long
All User Codes are 4 digits long
Functions
Private Function:
This is the most common function and used where the same code will be repeatedly used, e.g a pupil in a school or an employee with the same locker in the workplace.
Public Function:
The KitLock operates with a single user code. The guest enters a personal four-digit code twice, the second time to confirm the correct code. This locks the lock. The same code is entered once only to open the lock before being erased and ready for the next user. This function is used for short term, multi occupancy applications, e.g a locker in a leisure centre.
