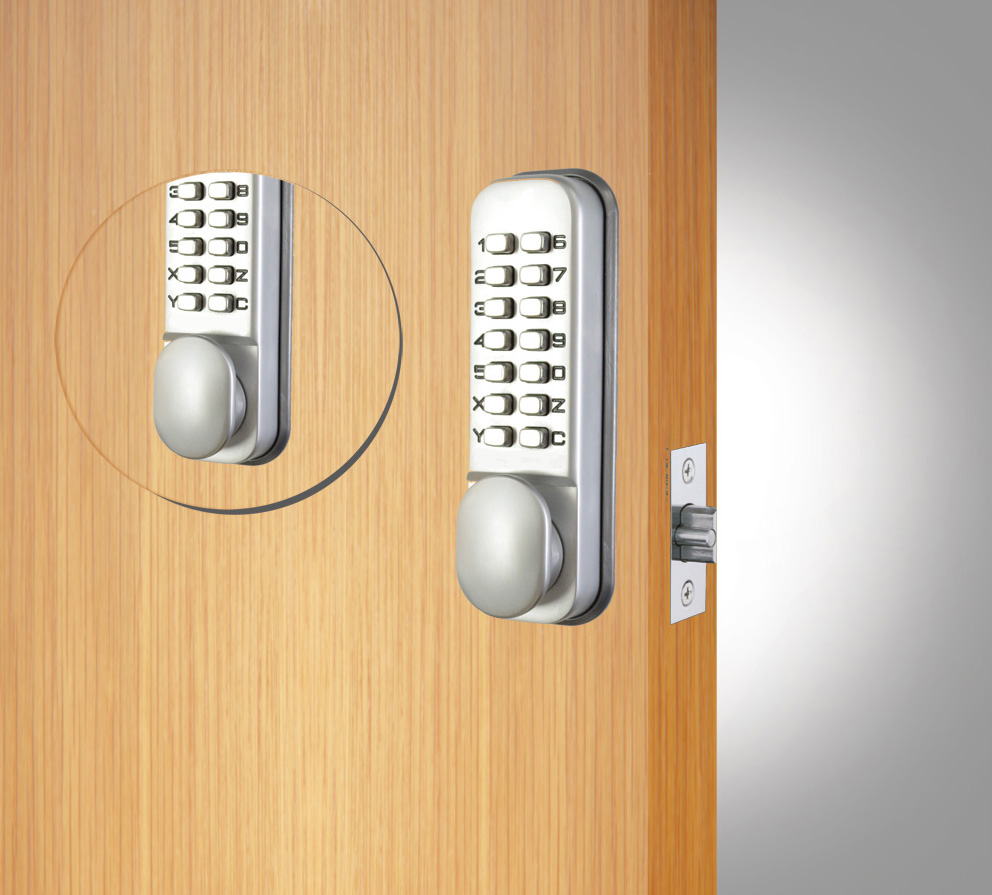

CL100 mechanical
The CL100 is an entry level push button mechanical code lock. Ideal for light duty use for office doors, storage rooms or cupboards, sheds, internal doors and cupboards at home.
Technical Specifications
| Functions | 3 available |
| Spindle type | Flat spring loaded spindle |
| Material | Zinc alloy |
| Door thickness | 35mm - 65mm (13/8”- 21/2”) |
| Buttons | 14 stainless steel buttons |
| Non handed | Locks will fit doors hung on the left or right |
| Fitting | Easy fit |
| Fitting Options | Vertical |
| Finish | Silver Grey and Polished Brass |
| Codes | 8,191 non sequential codes available |
| Code storage | Single code |
| Key override | Not available |
Functions
| Models | 100, 155, 190 |
| Mortice Latch | 155 supplied with ‘Hold open’ function allowing free entry Function can be disabled |
| Surface Deadbolt | 100 Silver Grey finish only. Bolt is moved manually by outside |
| Back to back | 190 mortice latch is supplied with two code plates to provide coded access in both directions |
| Latch | Light duty with stainless steel latchbolt head, with “anit-shim” plunger, 60mm (23/8”) backset requires 25mm (1”) hole, 82mm (31/4”) deep |
| Also available to order | 50mm (2”) backset latch requires 25 x 72mm (1”x 27/8”) hole 70mm (23/4”) backset latch require 25 x 92mm (1”x 35/16”) hole |
Code change method
Requires removal of lock from door, simple code change following instructions provided
Use in offices / schools / warehouses / hospitals / care homes / nurseries / hotels / leisure facilities / the home.

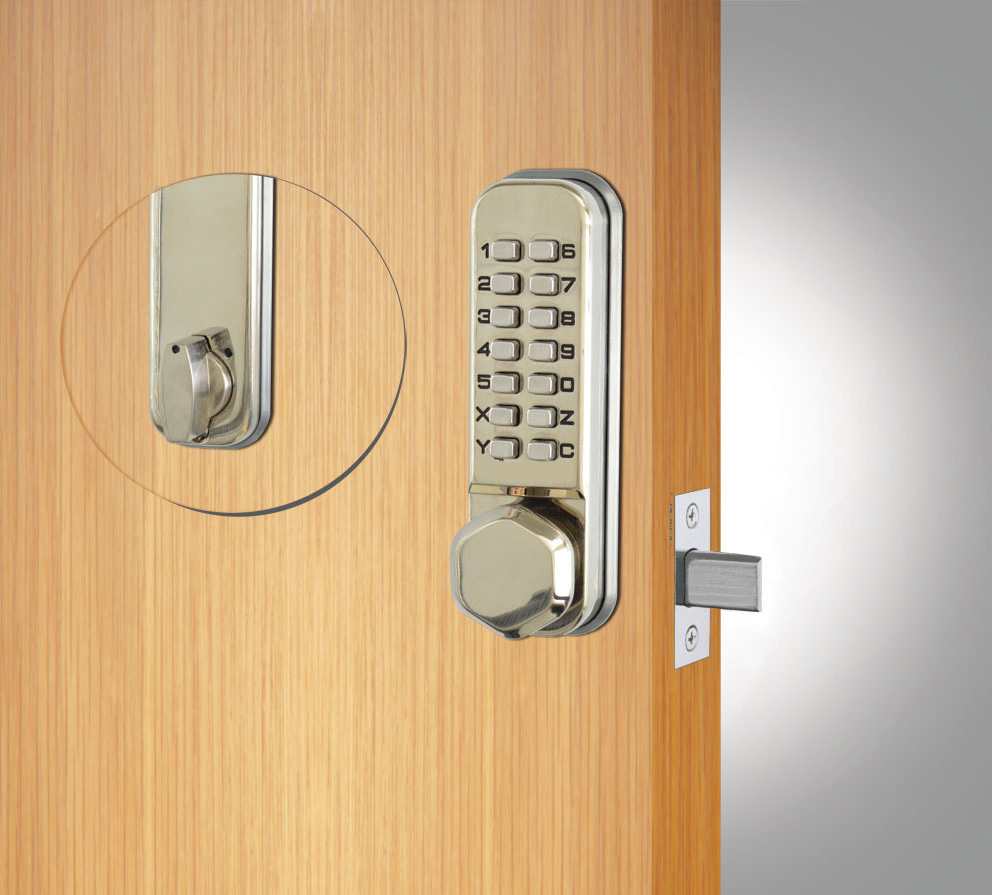

CL200 mechanical
The mechanical CL200 series are suitable for a wide range of light duty entry control applications. This premium range of light duty locks offers 5 functions in two PVD finishes. On request multiple locks can be supplied coded or keyed alike.
Technical Specifications
| Functions | 4 available |
| Spindle type | Flat spring loaded spindle |
| Material | Zinc alloy |
| Door thickness | 200 5mm - 65mm (3/16”- 2 1/2”) |
| Door material | Suitable for wooden doors |
| Buttons | 14 stainless steel buttons |
| Non handed | Locks will fit doors hung on the left or right |
| Fitting | Easy fit |
| Fitting Options | Vertical |
| Finish | Stainless Steel and Polished Brass |
| Codes | 8,191 non sequential codes available |
| Code storage | Single code |
| Key override | Available to order on any function. Keyed alike if required |
Functions
| Models | 200, 210, 255, 290 |
| Motice Latch | 255 supplied with ‘Hold open’ function allowing free entry. Function can be disabled |
| Mortice Deadbolt | 210 bolt extends 25mm (1”) beyond door edge when locked |
| Surface Deadbolt | 200 Stainless Steel finish only. Bolt is moved manually by outside knob after code input and freely by inside knob |
| Back to back | 290 mortice latch is supplied with two code plates to provide coded access in both directions |
| Latch | Light duty with stainless steel latchbolt head, with “anit-shim” plunger, 60mm (23/8”) backset requires 25mm (1”) hole, 82mm (31/4”) deep |
| Also available to order | 50mm (2”) backset latch requires 25 x 72mm (1”x 27/8”) hole 70mm (23/4”) backset latch require 25 x 92mm (1”x 35/16”) hole |
Code change method
Requires removal of lock from door, simple code change following instructions provided
Use in offices / schools / warehouses / hospitals / care homes / nurseries / hotels / leisure facilities / the home.

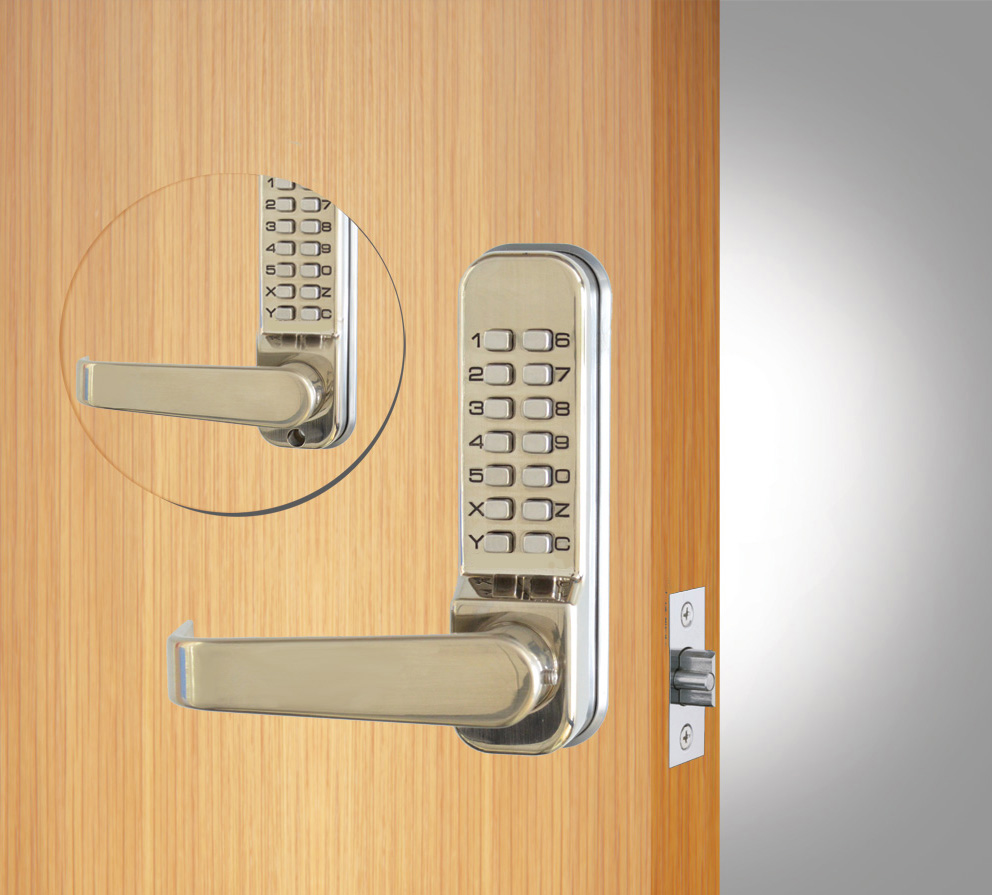

CL400 mechanical
The CL400 with the 14 buttons a total of 8,191 different codes are available, any of which may be entered in any order. For use on internal and external doors. With existing Mortice latch or lock, the existing lock must have 22mm fixing hole below the follower (spindle).
Technical Specifications
| Functions | 7 available |
| Spindle type | 2 part 8mm (5/16”) spring loaded spindle |
| Material | Zinc alloy |
| Door thickness | 35mm - 65mm (13/8”- 21/2”) |
| Door material | Suitable for wooden doors |
| Buttons | 14 stainless steel buttons |
| Non handed | Locks will fit doors hung on the left or right |
| Fitting | Easy fit |
| Fitting Options | Vertical |
| Finish | Stainless Steel and Polished Brass |
| Codes | 8,191 non sequential codes available |
| Code storage | Single code |
| Key override | Yes. Keyed alike can be ordered |
Functions
| Models | 400, 405, 410, 415, 420, 425 |
| Motice Latch | 420 & 425 Medium duty, stainless steel latchbolt head with“anti” shim deadlocking plunger, 8mm (5/16”) follower 60mm (23/8”) backset, requires 25mm (1”) hole, 82mm (31/4”) deep 70mm (23/4”) backset, requires 25mm (1”) hole, 92mm (35/16”) deep 410 outside lever will retract latch after correct code 415 as 410 with Code Free option. |
| Mortice Lock | Euro profile mortice sash lock with deadbolt and latchbolt. Supplied with double euro profile cylinders with three keys. May be ordered keyed alike Code Free access option via keypad on models 405, 415 & 425 |
| Full Mortice Lock | Safety feature. 420 prevents accidental lock in 425 as 420 with Code Free function on keypad |
| Back to back | 410 (Mortice Latch) may be ordered with two code plates to provide coded access in both directions 400 Front and back plates only. 405 as 400 with Code Free |
Code change method
Requires removal of lock from door
Use in offices / schools / warehouses / hospitals / care homes / nurseries / hotels / leisure facilities / the home.

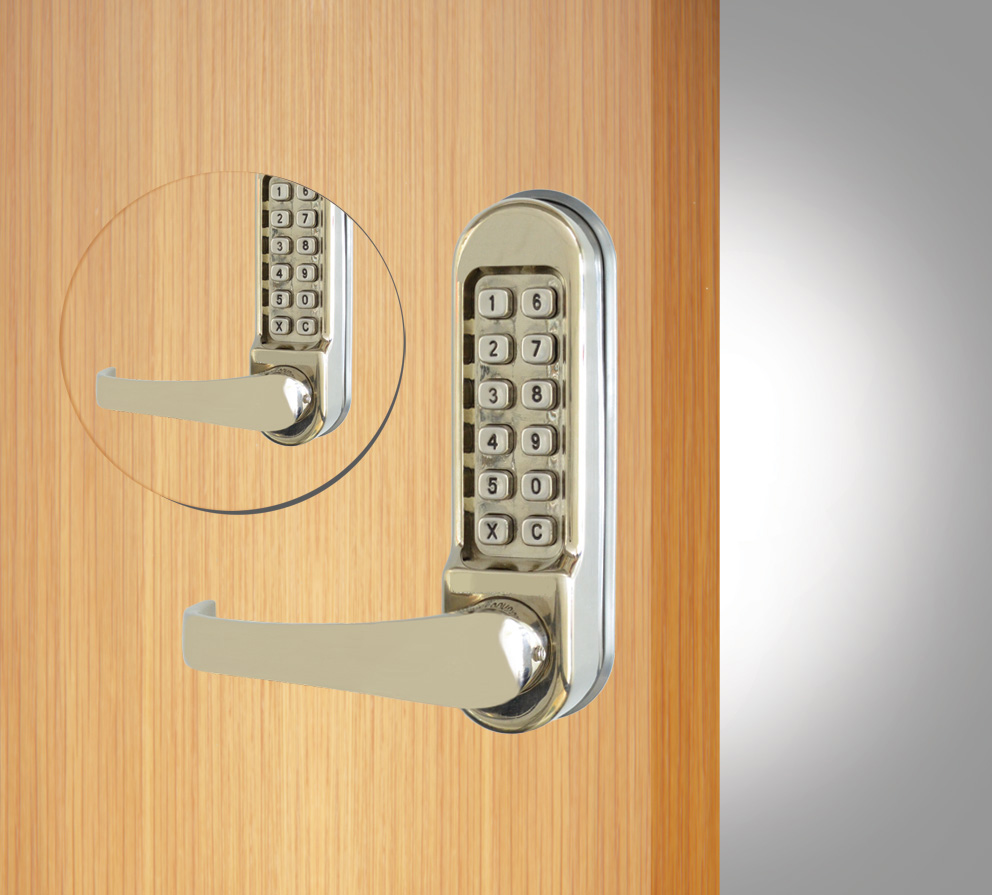

CL500 mechanical
The CL500 Locks are a heavy duty range with full size lever handles, allowing use as the primary lock on most doors, particularly in high traffic situations.
Technical Specifications
| Functions | 12 available |
| Spindle type | 2 part 8mm (5/16”) spring loaded spindle |
| Material | Zinc alloy |
| Door thickness | 35mm - 65mm (13/8”- 21/2”) |
| Door material | Suitable for wooden doors |
| Buttons | 12 stainless steel buttons |
| Non handed | Locks will fit doors hung on the left or right |
| Fitting options | Vertical |
| Fitting | Stainless steel and polished brass |
| Fitting Options | Vertical |
| Finish | Stainless Steel and Polished Brass |
| Codes | 8,191 non sequential codes available. Code Free access option via keypad on models 505, 515 & 525 |
| Code storage | Single code |
| Key override | Yes on 520/525 only |
Functions
| Models | 500, 500BB, 500PK, 505, 505BB, 505PK, 510, 510BB, 515, 515BB, 520, 525, |
| Motice Latch |
510 & 515 medium duty, stainless steel latchbolt head with “anti” shim deadlocking plunger, 8mm (5/16”) follower 60mm (23/8”) backset, requires 25mm (1”) hole, 82mm (31/4”) deep 70mm (23/4”) backset, requires 25mm (1”) hole, 92mm (35/16”) deep |
| Mortice Lock |
520 & 525 euro profile mortice sash lock with deadbolt and latchbolt. Complete with double cylinder to control deadbolt and to retract latchbolt Supplied with double euro profile cylinders with three keys. May be ordered keyed alike |
| Full Mortice Lock |
520 with Safety Feature outside lever will retract after code is entered. Latchbolt will lock when door is closed. Key retracts deadbolt for entry and controls deadbolt position. Deadbolt in safety features prevents accidental locking in. 525 as 520 with Code Free function. |
| Back to back |
500, 505, 510/515 (Mortice Latch) can be ordered with two keypad plates. Stainless steel finish only |
Code change method
Requires removal of lock from door

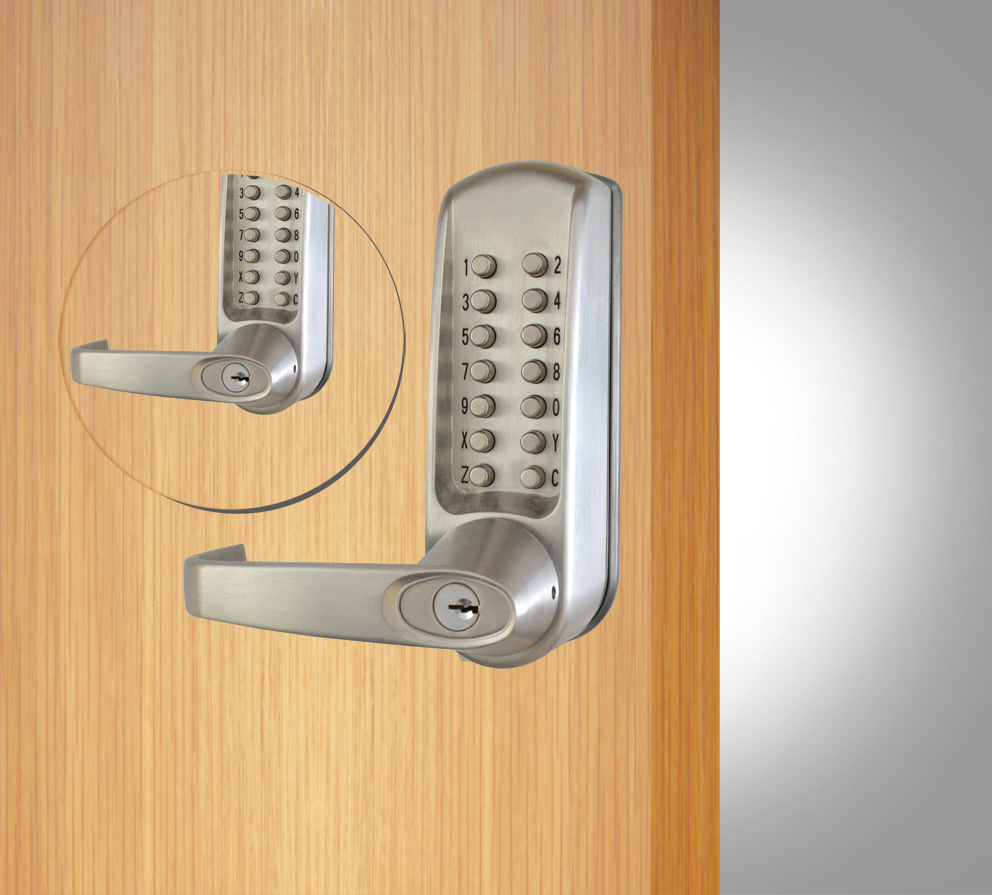

CL600 mechanical
The CL600 locks are a heavy duty mechanical range that allows the code to be changed from the front via a key. The CL600 Quick Code system brings significant advantages to commercial users such as hospitals, schools and local authorities.
Technical Specifications
| Functions | 12 available |
| Spindle type | 2 part 8mm (5/16”) spring loaded spindle |
| Material | Zinc Alloy |
| Door thickness | 35mm - 65mm (13/8”- 21/2”) |
| Door material | Suitable for wooden doors |
| Buttons | 14 stainless steel buttons |
| Non handed | Locks will fit doors hung on the left or right |
| Fitting Options | Vertical |
| Finish |
PVD (Physical Vapour Deposition) hardwearing low maintenance finishes BS (brushed steel) and PB (polished brass) |
| Codes | 8,191 non sequential codes available |
| Code storage | Single code |
| Tested |
Grade 2 ANSI A156.2 UL/ULC Fire Rating 3 hours (When fitted with fire kit) |
| Keying alike | Locks can be supplied as keyed alike on request |
| Key cylinder change | From lock front |
Functions
| Models |
600, 600BB, 600PK, 605, 605PK, 605BB, 610, 610BB, 615, 615BB, 620, 625 |
| Motice Latch |
610 & 615 medium duty, stainless steel latchbolt head with “anti” shim deadlocking plunger, 8mm (5/16”) follower. |
| Mortice Lock |
620 & 625 euro profile mortice sash lock with deadbolt and latchbolt. Complete with double cylinder to control deadbolt and to retract latchbolt Supplied with double euro profile cylinders withthree keys. May be ordered keyed alike |
Code change method
On door via key
