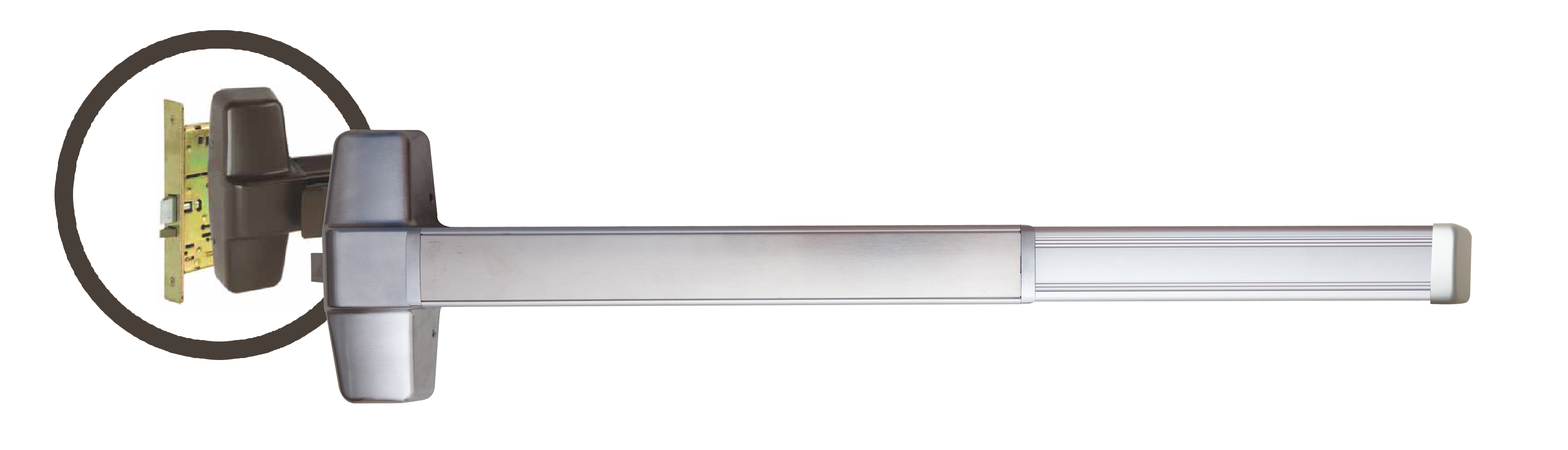

MR7700/7586F/7587F

FC-MR7700 Series Exit Devices

Grade (1) Mortise Exit Device

 C8 1



Specifications

For Doors Wood / metal. 1 3/4” (44.5mm) minimum thickness;
4 1/2” (114mm) minimum stile width
Chassis Nonferrous alloy
Chassis Cover Bronze or stainless steel
End Cap Brass, bronze or stainless Steel Construction
Handing Non-Handed. Specify RHR or LHR for convenience
ANSI standard A156.3, Grade 1.
Mounting Furnished standard with wood and machine screws.
Strike Standard ANSI strike
Mortise Lock Grade (1) for 1 3/4” (44.5mm) thick doors. Reversible. Fits door prepared for ANSI Standard A115.1
Fire Exit hardware MR7700 Series for fire exir hardware for all types of 8” x 8” double doors for up to 3 codes.
Trim See trim Designs section
Finish (ELR) Electrical Latch Retraction and RX & LX Signal Switch available
Door size MR7700-36 for 36” doors.
MR7700-48 for 48” doors.



C8 2




MR7700 Mortise Lock Rim Exit Devices

Trim Selection

ESCUTCHENON LEVER DESIGN

 C5 3

Construction

- Rigid, non clutch mechanism.

- Double heavy duty spring support to prevent sagging and enhance openration.

- Grade 1, thrubolted design, clutch freewheeling. Non handed design. Easily field reversible.

- Hardened ateel heavy duty tailpiece. Available for fire and non fire rated rim and vertical rod exit devices.



Door Thickness

Standard 1 3/4"



Escutcheon Dimensions

2" width x 8 " length. Lever length:4 3/4"

Fits and covers 2 1/8" 161 cutout



MRESC-7700     Entrance

key locks or unlocks lever ANSI Fuction - 63



MRESC-7705     Storeroom
key retracts latchbolt, otherwise always locked. ANSI Fuction - 04



MRESC-7730     Passage

Trim always operable and free. ANSI Fuction - 62



Keyway:

Standard 6-pin “C” keyway. Also available in Schlage C-K, Russwin D1, Corbin 60, Sargent LA, Falcon/Weiser E, Arrow, Yale GA, Yale 8, Kwikset. Can also accept Medeco,  Assa, and Kaba high security cylinders.

Metal Doors / Wood Doors / Trim Selection


FC-7586F (MCVR7700) For Metal Doors

FC-7587F (WCVR7700) For Wood Doors

Grade 1 Concealed Vertical Rod Exit Device

 C9 1

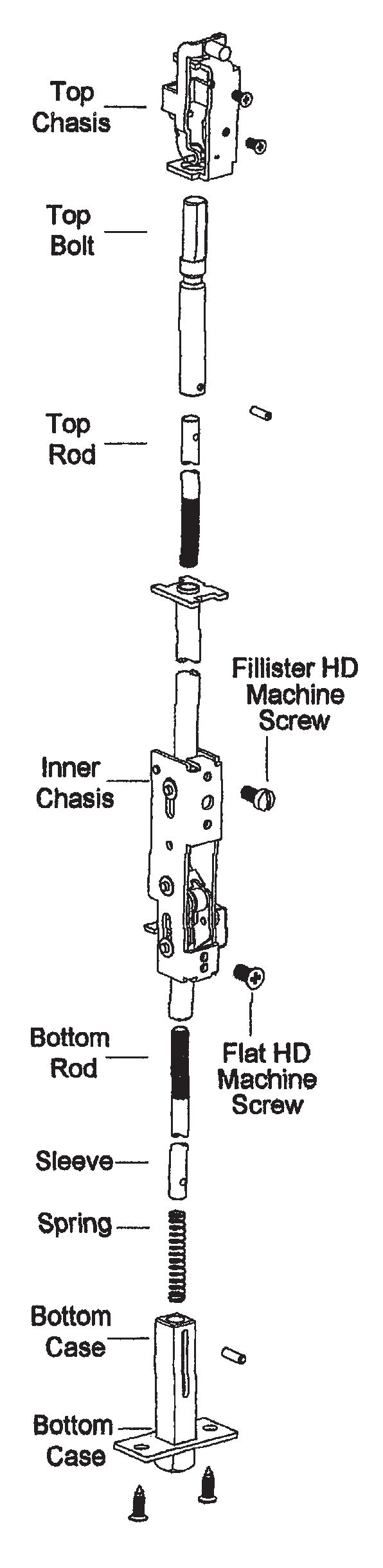

C9 2





Specifications

For Doors Wood / metal. 1 3/4” (44.5mm) minimum thickness;
1/2” (114mm) minimum stile width
Chassis Nonferrous alloy
Chassis Cover Zinc
End Cap Zinc Construction
Handing Non-Handed. Specify RHR or LHR for convenience
ANSI standard A156.3, Grade 1.
Mounting Furnished standard with wood and machine screws.
Strike Standard ANSI strike
Mortise Lock Grade (1) for 1 3/4” (44.5mm) thick doors. Reversible.
Fits door prepared for ANSI Standard A115.1
Fire Exit hardware MR7700 Series for fire exir hardware for all types of 8” x 8” double doors for up to 3 codes.
Trim See trim Designs section
Door size FC7586F/7587F-3684 for 36" x 84" doors.
FC7586F/7587F-3696 for 36" x 96" doors.
Other sizes available on request

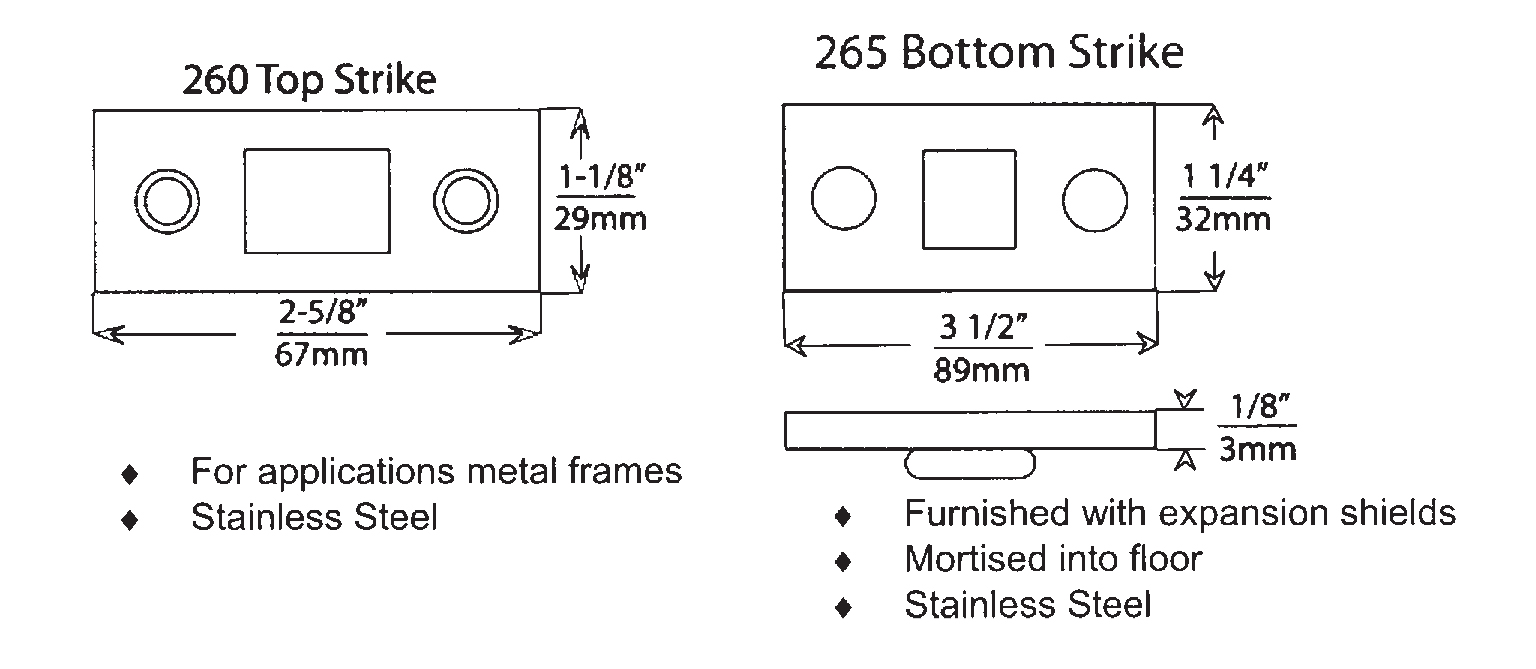

C9 3




FC-7586F(MCVR7700) / FC-7587F(WCVR7700)

Concealed Vertical Rod Exit Device for Wood & Metal Doors

Trim Selection

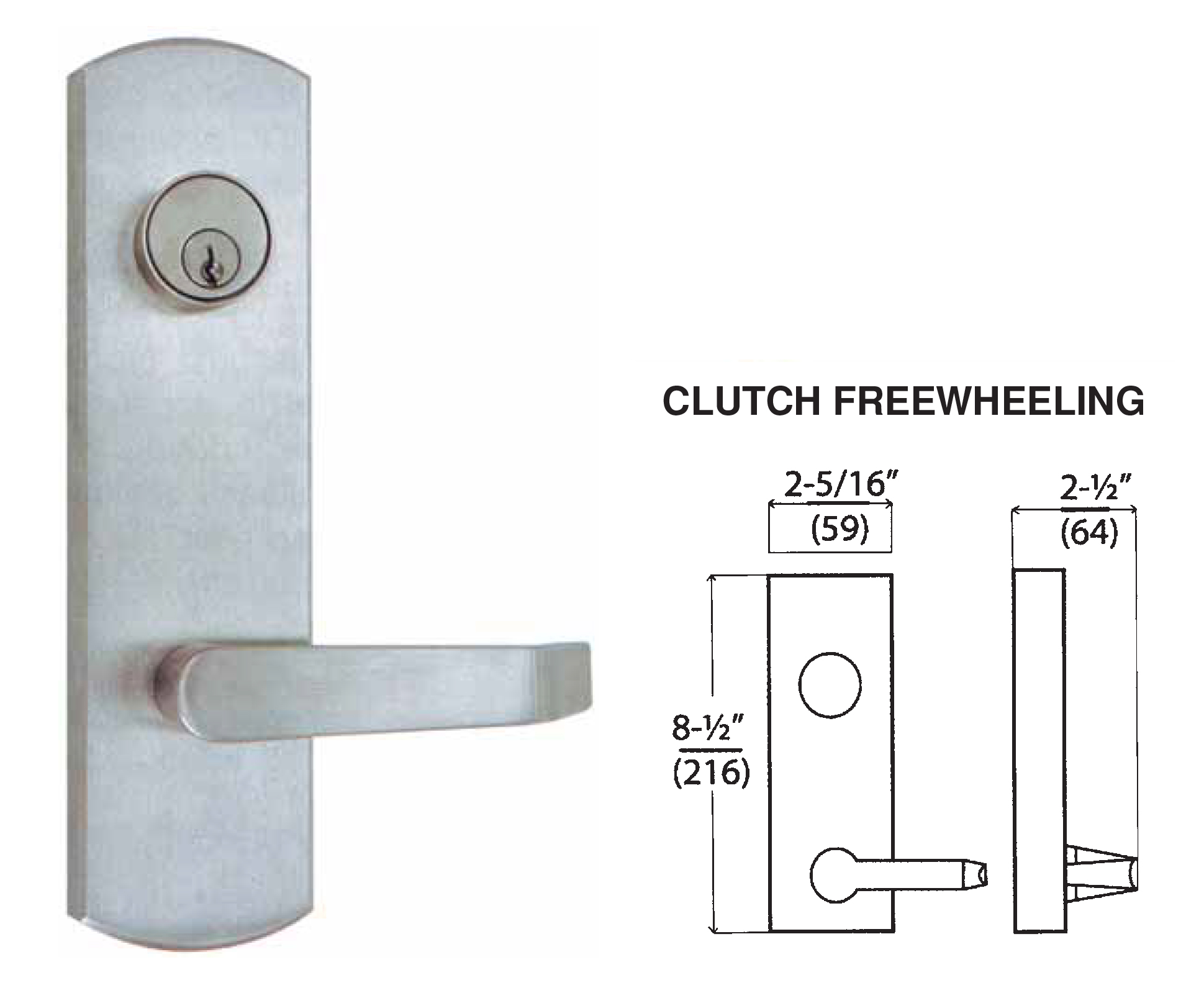

C9 6

ESCUTCHON LEVER DESIGN

Construction

- Grade 1, thrubolted design, clutch freewheeling. Non handed design. Easily field reversible.

- Hardened ateel heavy duty tailpiece. Available for fire and non fire rated rim and vertical rod exit devices.



Finishes

Architectueal plated finishes



Door Thickness

Standard 1 3/4"



Escutcheon Dimensions

2 5/16" width x 8 1/2" length. Lever length: 4 3/4". Fits and covers 2 1/8" 161 cutout



CVRESC-7700      Entrance

Clutch Mechanism key locks or unlocks lever Operates as classroom function ANSI Fuction - 63



CVRESC-7705      Storeroom

Clutch Mechanism key retracts latchbolt, otherwise always locked. ANSI Fuction - 04



CVRESC-7730      Passage

Trim always operable and free. ANSI Fuction - 62



CVRESC-7740      Dummy

Dummy trim. One sided. ANSI Fuction - 10



Keyway:

Standard 6-pin “C” keyway. Also available in Schlage C-K, Russwin D1, Corbin 60, Sargent LA, Falcon/Weiser E, Arrow, Yale GA, Yale 8, Kwikset. Can also accept Medeco,  Assa, and Kaba high security cylinders.



Interchangeable Core:

Interchangeable core locks will accept compatible 6 or 7 pin cores with BEST, FALCON and ARROW.
