#ALM 3000-36 & #ALM 7000-36

LEON/MCKIN     Alarm Exit Hardware

#ALM 3000-36 / #ALM 7000-36

 C3 5 1

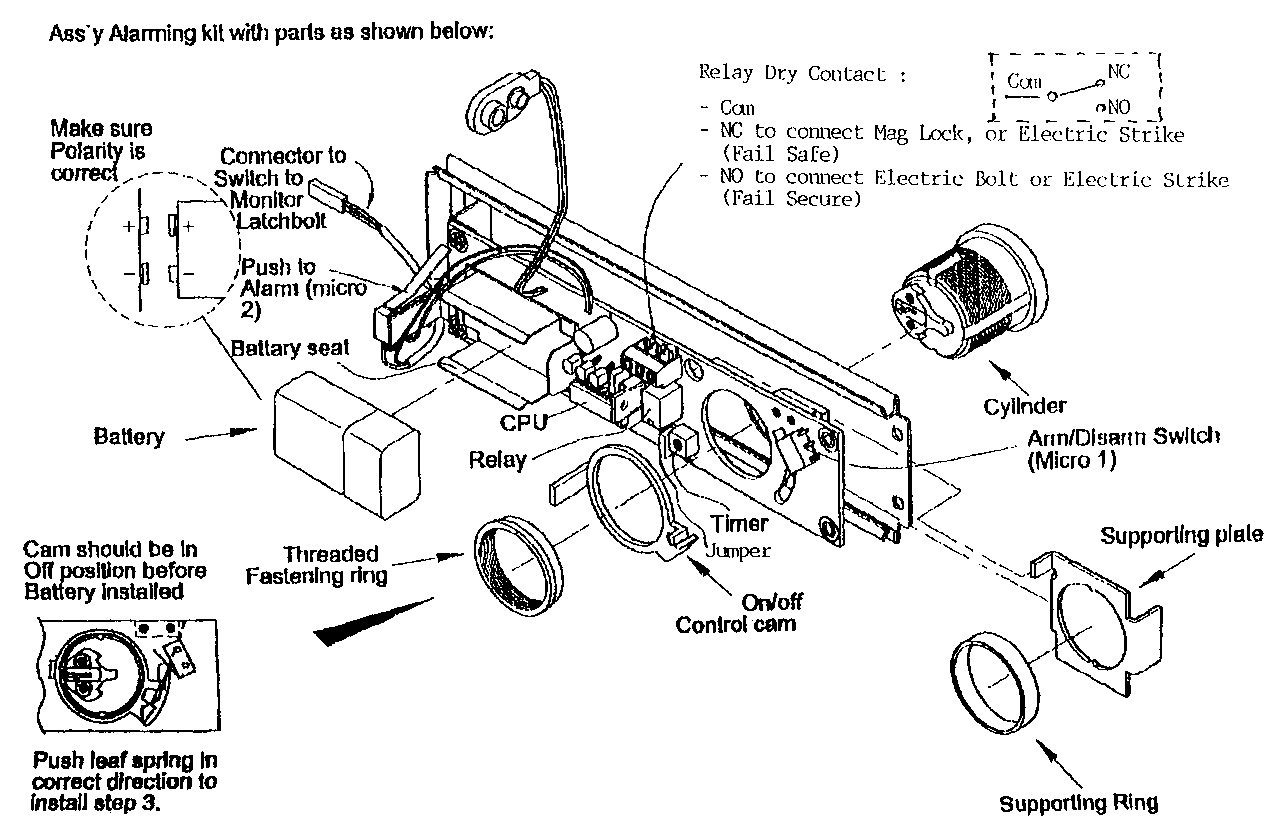

C3 5 2


Rim Type Exit Devices

ALM 3000-36 Alarm rim type 36"door (panic grade)

ALM 3000-48 Alarm rim type 48"door (panic grade)

ALM 7000-36 Alarm rim type 36"door (fire grade)

ALM 7000-48 Alarm rim type 48"door (fire grade)


Vertical Rod Type Exit Devices

Prefix "ALM" before part #.



Alarm units has an internal horn. When the push rail is depressed, the horn sounds to provide audible an means of signaling that the door has been opened and violated,

The unit has changeable 2 minute alarm cutoff or manual reset. Preset at factory for 2 minute alarm cut off.
Jumper cable is provided to swich to continuous alarm.

The key switch to turn the alarm off is a standard 11/4"cylinder with "C" keyway. The alarm operates on one standard 9 volt transistor battery. when battery is weak the horn will emit an intermittent signal.

Alarmed units are supplied with two switches. One switch moniters the push rail and the other switch monitors the latchbolt for full proof security.

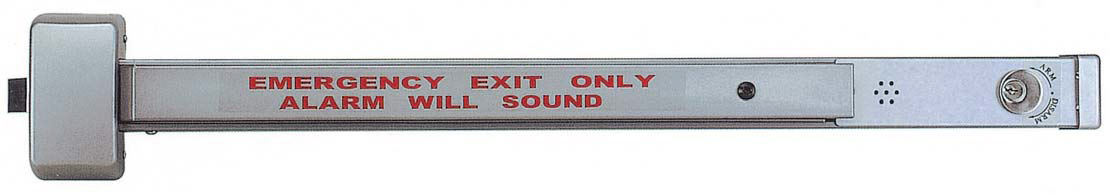

Unit includes "emergency exit only. Alarm will sound"
