#1000 & #4000

LEON/MCKIN     1000/4000 (9900 & F9900) Series

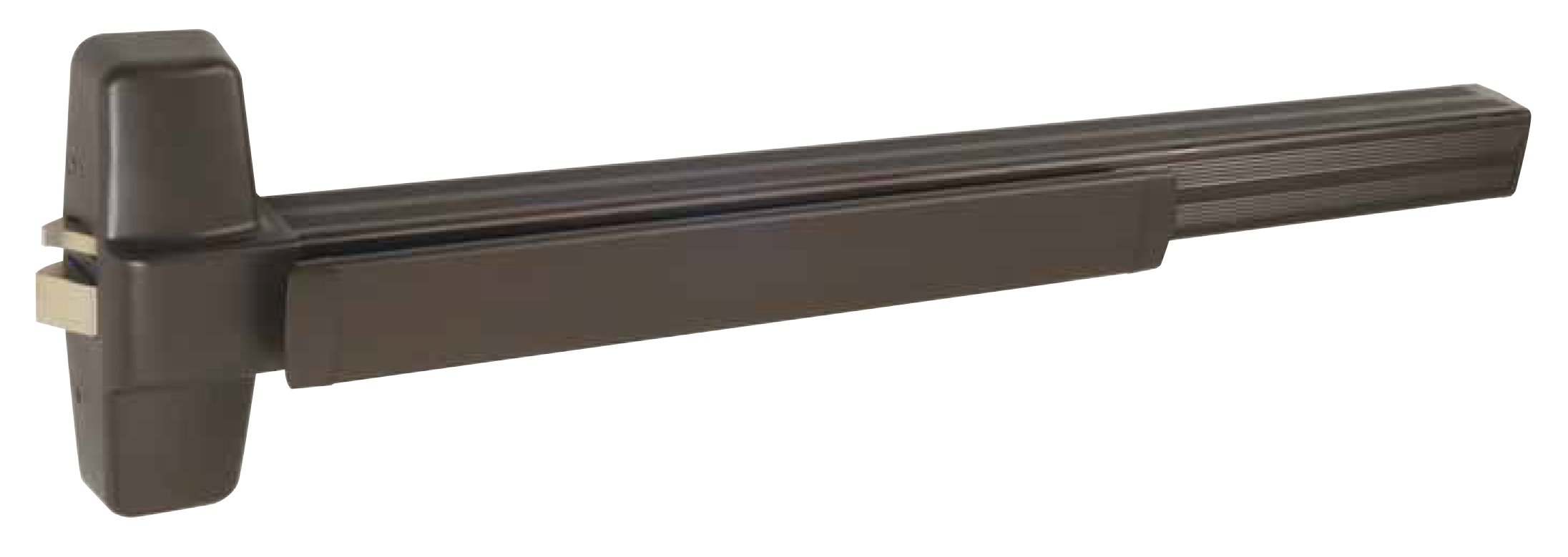

Panic & Fire Rim Type Exit Devices

 C7 2 1


For Doors

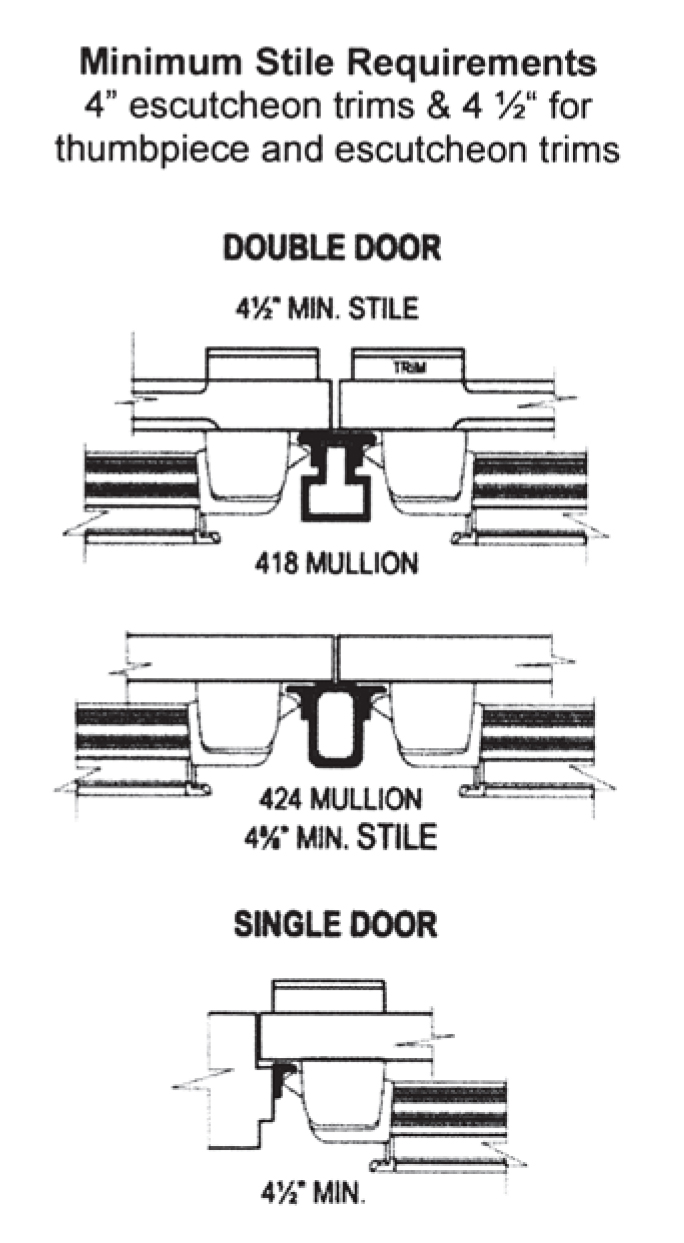

13/4" thick standard optional 21/4thick. 41/2" minimum stile width required for signle or double door application using standard 239 strike and pull or lever trims.


Non-ferrous alloy (Panic Grade), steel (Fire Grade).


Brass, bronze or stailess steel. Cover stock hollow metal doors with 161 cut out.


Furnished with wood and machine screws. Available with thru bolts on request. Thru bolts are included and standard packaging on rated devices.

End Cap

Brass, bronze or stainless steel constrution.


Non handed, center hub.

Latch Bolt

Stainless steel 3/4" throw with anti-pick feature.


Stainless steel throughout.

ANSI standard

A156.3, Grade 1.

Rail Assembly

Heavy gauge extruded aluminum body with stainless.


938 packed atandard (see strike page).

Dogging Feature

Allen-type key furnished standard on non-fire labeled devices.



UL and ULC Listed

9900 Series for panic. F9900 Series for fire exit hardware for all types of 4’ x 8’ single doors and 8’ x 8’ double doors for up to 3 hours fire labeled installations, conforms to standards UL 10C and UBC 7-2-1997 codes.


Architectural plated finishes.

Door size

9900EO36 and F9900EO36 for 36” doors.
9900EO48 and F9900EO48 for 48” doors.




Touchbar height to finished floor

41"(1043mm) at center

Touchbar projection

5/8" (92mm)
1- 7/8" (73mm)

Center case

8- 1/16 x 2 3/4 x 2 1/2 "
(205mm x 68mm x 62mm)

Device length
- Short 3'(914mm)
- Short 4'(1219廿mm)
- Long 4'(1219mm)


2'2" x 3' (840mm to 914mm) door size

2'9" x 4' (1145mm to 1219mm) door size
2'9" x 4' (1145mm to 1219mm) door size
