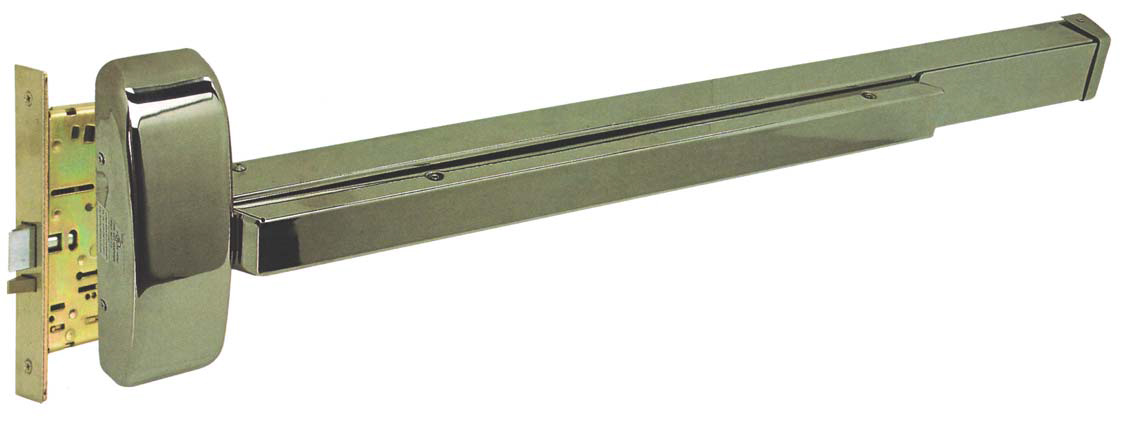

FC2200F (MR9800) Series Exit Devices
Grade (1) Mortise Lock Exit Device
Specifications
|
For Doors |
Wood/Metal. 13/4" (44.5mm) minimum thi kness ; |
|
Chassis |
Nonferrous alloy |
|
Chassis Cover |
Bronze or stainless steel |
|
End Cap |
Brass, Bronze or stainless Steel Construction |
|
Handing |
Non-Handed. Specify RHR or LHR for convenience. |
|
ANSI standard |
A156.3, Grade 1. |
|
Mounting |
Furnished standard with wood and machine screws. |
|
Strike |
Standard ANSI strike. |
|
Mortise Lock |
Grade (1) for 13/4" (44.5mm) thick doo s. Reversible. Fits door prepared for ANSI Standard A115.1 |
|
Fire Exit hardware |
MR9800 Series for fire exit hardware for all types of 8" x8" double doors for up to 3 codes. |
|
Trim |
See trim Designs section |
|
Door size |
For 36" doors. For 48" doors. |

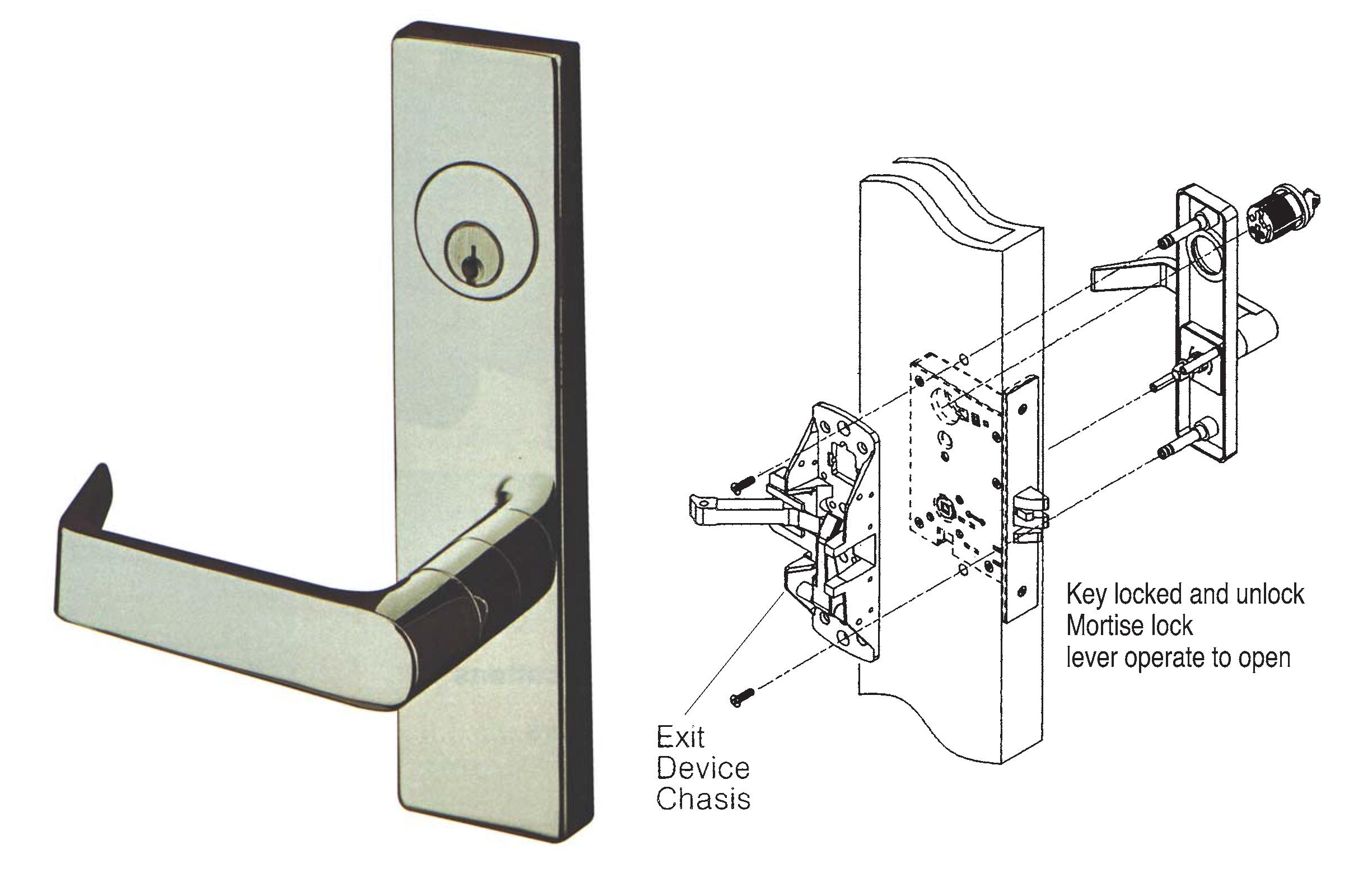

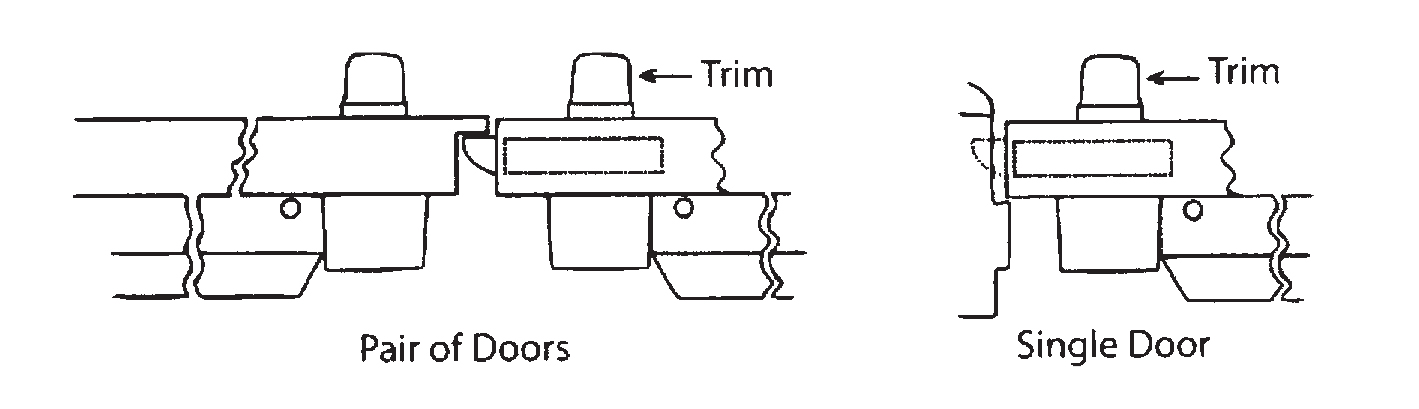

LEON/MCKIN MRESC TRIM for Mortise Lock Rim Exit Device
Trim Selection
Escutcheon lever design
Construction
- Rigid, non clutch mechanism.
- Double heavy duty spring support to prevent sagging and enhance openration.
- Grade 1, thrubolted design, clutch freewheeling. Non handed design. Easily field reversible.
- Hardened steel heavy duty tailpiece. Available for fire and non fire rated rim and vertical rod exit devices.
Door Thickness
Standard 13/4"
Escutcheon Dimensions
2" width x 8" length. Lever length:43/4".
Fits and covers 2 1/8" 161 cutout
MRESC-9800 Entrance
Key locks or unlocks lever ANSI Function (63)
MRESC-9805 Storeroom
Key retracts latchbolt, otherwise always locked. ANSI Function (04)
MRESC-9830 Passage
Trim always operable and free. ANSI Function (62)
Keyway:
Standard 6-pin “C” keyway. Also available in Schlage C-K, Russwin D1, Corbin 60, Sargent LA, Falcon/Weiser E, Arrow, Yale GA, Yale 8, Kwikset. Can also accept Medeco, Assa, and Kaba high security cylinders.
