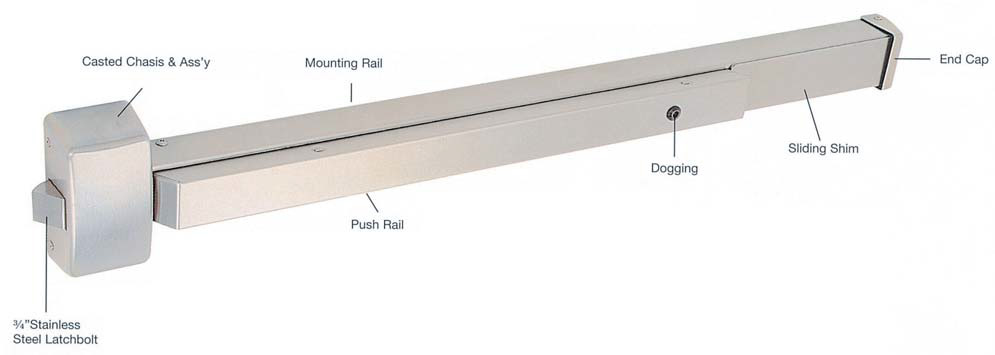

For Doors

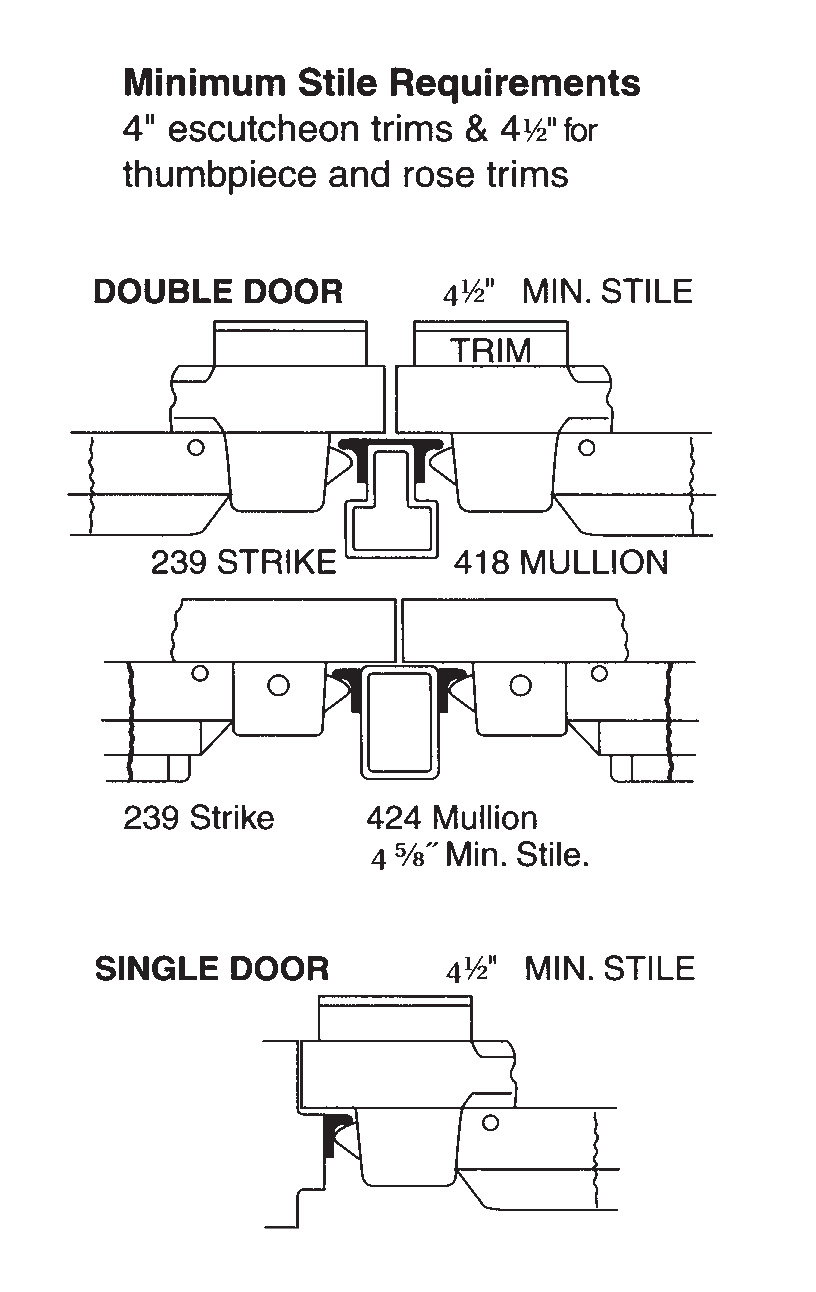

1³/₄" thick standard optional 2¹/₄" thick. 4¹/₂" minimum stile width required for signle or double door application using standard 239 strike and pull or lever trims.

Chassis

Nonferrous alloy (Panic Grade), steel (Fire Grade).

Cover

Nonferrous alloy. Cover stock hollow metal doors with 161 cutout.

Mounting

Furnished standard with wood and machine screws. Available with thru bolts on request.

End Cap

Steel construction.

Alarm

Available. See page.

Hand

Non handed, center hub.

Latch Bolt

Stainless steel ³/₄" throw.

Spring

Stainless steel throughout.

ANSI standard

A156.3, Grade 1.

Rail Assembly

Heavy gauge steel, painted.

Strike

239 packed atandard (see strike page).

Dogging Feature

Allen-type key furnished standard on non-fire labeled devices. Cylinder dogging available.

Mullion

Available.

UL and ULC Listed

3000 Series for panic. 7000 Series for fire exit hardware for all types of 4' x 8' single doors and 8' x8' doors for up to 3 hours fire labeled installations, conforms to standards UL 10C and UBC 7-2-1997 codes.

Finish

Alum/Duro/Gold

Door size

32" / 36" / 48"

Touchbar height to finished floor

41"(1043mm) at center

Touchbar projection
                 neutral
                 depressed

2 ¹/₂"(64mm)
1 ³/₄"(45mm)

Center case

5 ¹/₈x2 ³/₄ x2(129mm x 69mm x 52mm)

Device length - Short 3'(914mm)
             Long 4'(1219mm)

2'9"x3'(840mm to 914mm) door size
2'9"x4'(1145mm to 1219mm) door size
