LEON/MCKIN     #3100-BTL & #7100-BTL Vertical Rod Type Exit Device Less Bottom Rod - LBR

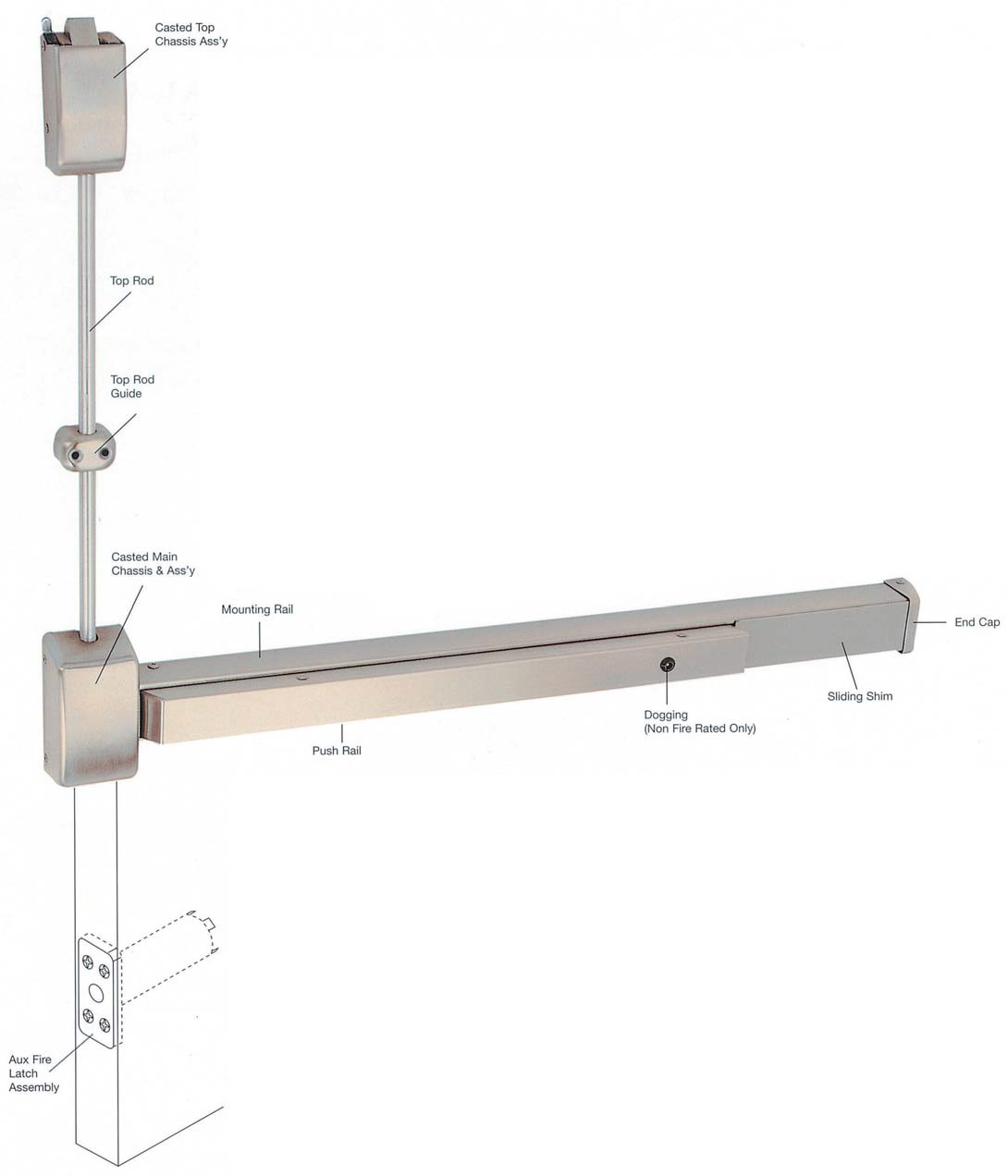

 C3 4 1

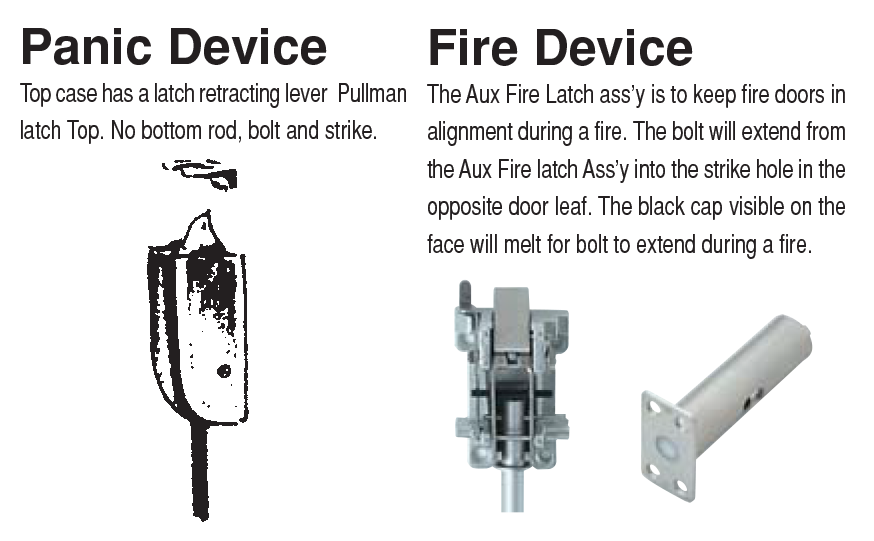

C3 4 2


LBR----------------------- No Bottom Strike, Free access for wheel chairs, strectcher and carts therefore eliminates tripping potential and disfiguration of floors due to dragging of bootom bolts.

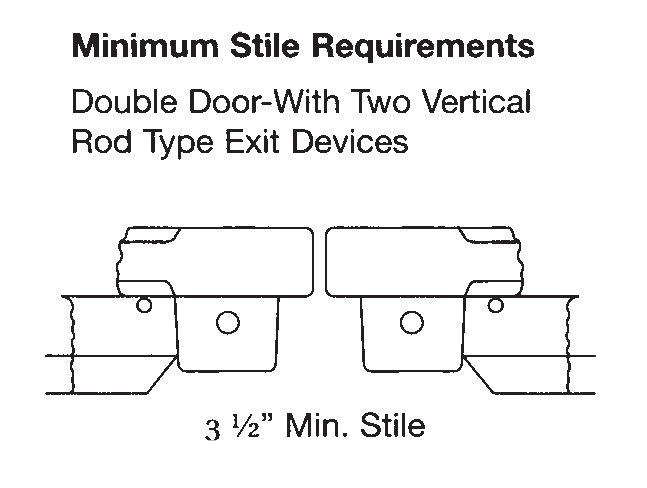

For Doors --------------- 13/4” thick standard. 3 3/4” ” minimum stile width required for signle door application. 3 1/2” minimum stile width required for double door application. Lever trims available.
Chassis ------------------ Nonferrous alloy (Panic Grade), steel (Fire Grade).
Cover------------ Nonferrous alloy. Cover stock hollow metal doors with 161 cutout.
Mounting ---------------- Furnished standard with wood and machine screws. Thru bolts are standard packaging on fire rated devices.
Hand --------------------- Easily field reversible. Specify at time of order LHRB, RHRB for convenience.
Dogging Feature ------ Allen-type key furnished standard on non-fire labeled devices.
UL and ULC Listed ---- All Series for panic. BTL Series for fire exit hardware for all types of 8’ x 8’ double doors including double egress for up to 3 hours metal. Conforms to standards UL 10C and UBC 7-2-1997 codes.
Finish -------------------- Aluminum (alum), dark bronze duranodic (duro), gold.
Door size --------------- 36” x 84” / 48” x 96” / 36” x 96” doors.
Alarm -------------------- Available. Prefix “Alrm” before part #.
End Cap------------------Steel construction.
Latch Bolt,Spring ----- Stainless steel.
ANSI standard --------- A156.3, Grade 1.
Rail Assembly----- Heavy gauge steel, painted.
Strike --------------------- see strike page.

Touchbar height to finished floor 41"(1043mm) at center
Touchbar projection

Center case 1/8x2 3/4X 2(129mm x 69mm x 52mm)

Device length - Short 3'(914mm)
                        Long 4'(1219mm)

2'9"x3'(840mm to 914mm) door size
2'9"x4'(1145mm to 1219mm) door size
Panic grade top & bottom latch case 315/16"x21/8"x13/8"(100mm x 52mm x 42mm)
Fire grade top latch case 315/16"x211/16"x13/16"(100mm x 68mm x 53mm)
top and bottom rod length for 36" x 84" doors Top rod 43 1/4" (1350mm)
top and bottom rod length for 48" x 96" doors Top rod 53 1/16" (1350mm)
Vertical rods 1/2"(13mm) Round tubing.
