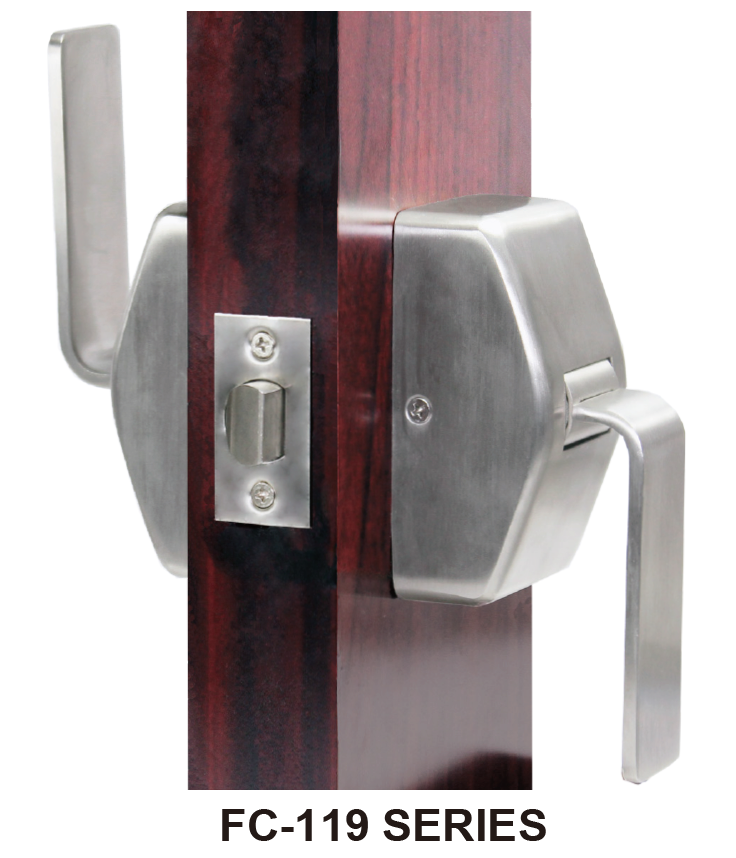

Grade 1 Heavy Duty
Hospital Latch
FEATURES
UL-listed for use on all fire doors
Meets ADA requirements

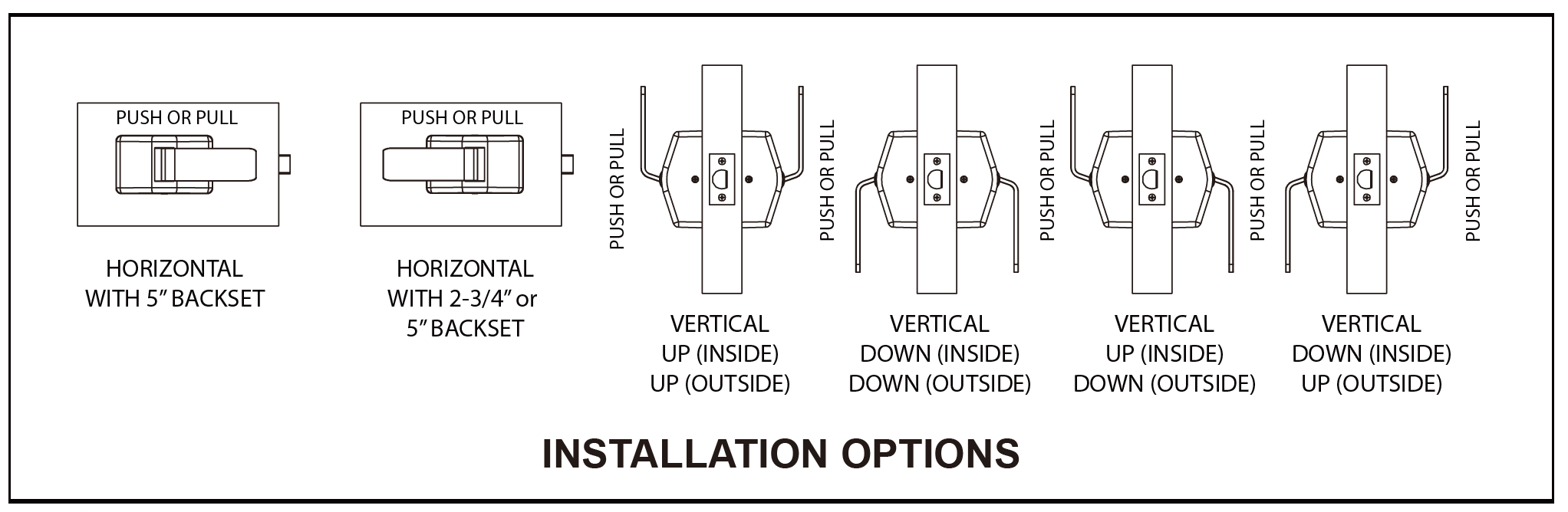

Can be installed in 6 different mounting positions
Covers and paddles are made of stainless steel
Non-Handed
Standard T-Strike and Plastic Dust Box
1 ¾” door thickness
2 ¾” backset standard, face plate 1 ⅛” x 2 ¼”
Optional 5” backsets
2 ⅝” x 4 ⅜” Covers
2 ⅝” Handle Projection, Anti-microbial coating option available
Lead lining option available for doors with lead lining
Optional ASA ANSI Strike
| MODEL# |
FUNCTION |
FINISH |
| FC119-20 |
PRIVACY |
US32D |
| FC119-30 |
PASSAGE |
The hospital push / pull latch allows for easy opening of doors with an easy push or pull action using elbows or hips when hands are not free.
Ideal for use in commercial applications, institutions, hospitals, washrooms or public buildings.
