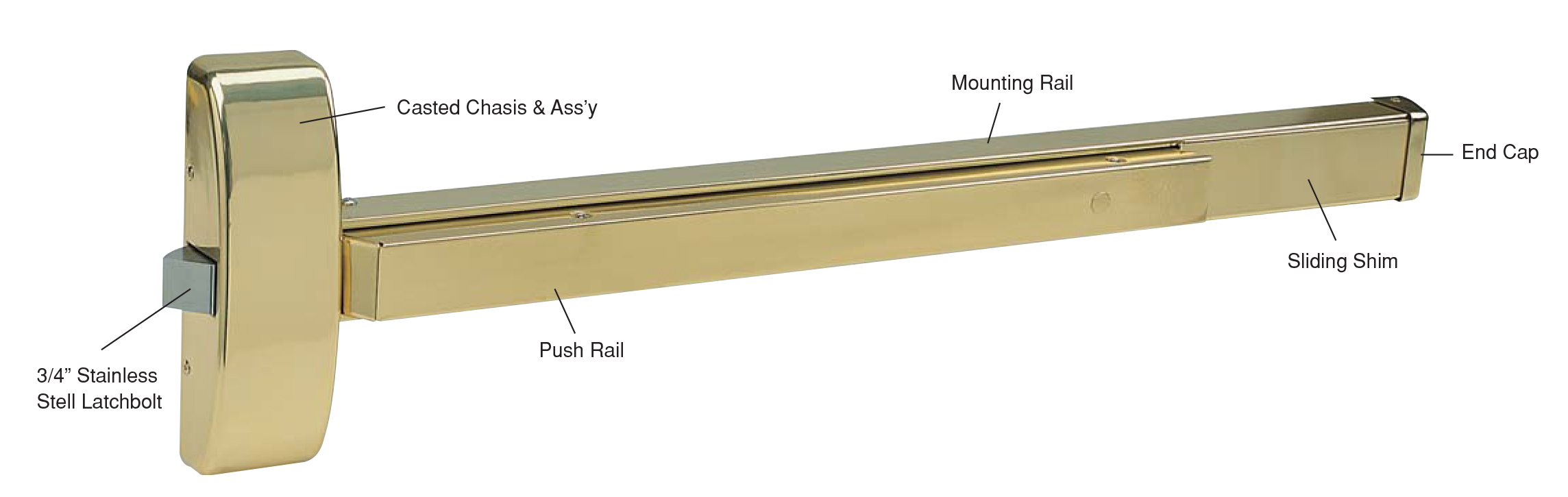

LEON/MCKIN #6000 & #9000 Rim Type and Fire Exit Device
Specifications
|
For Doors |

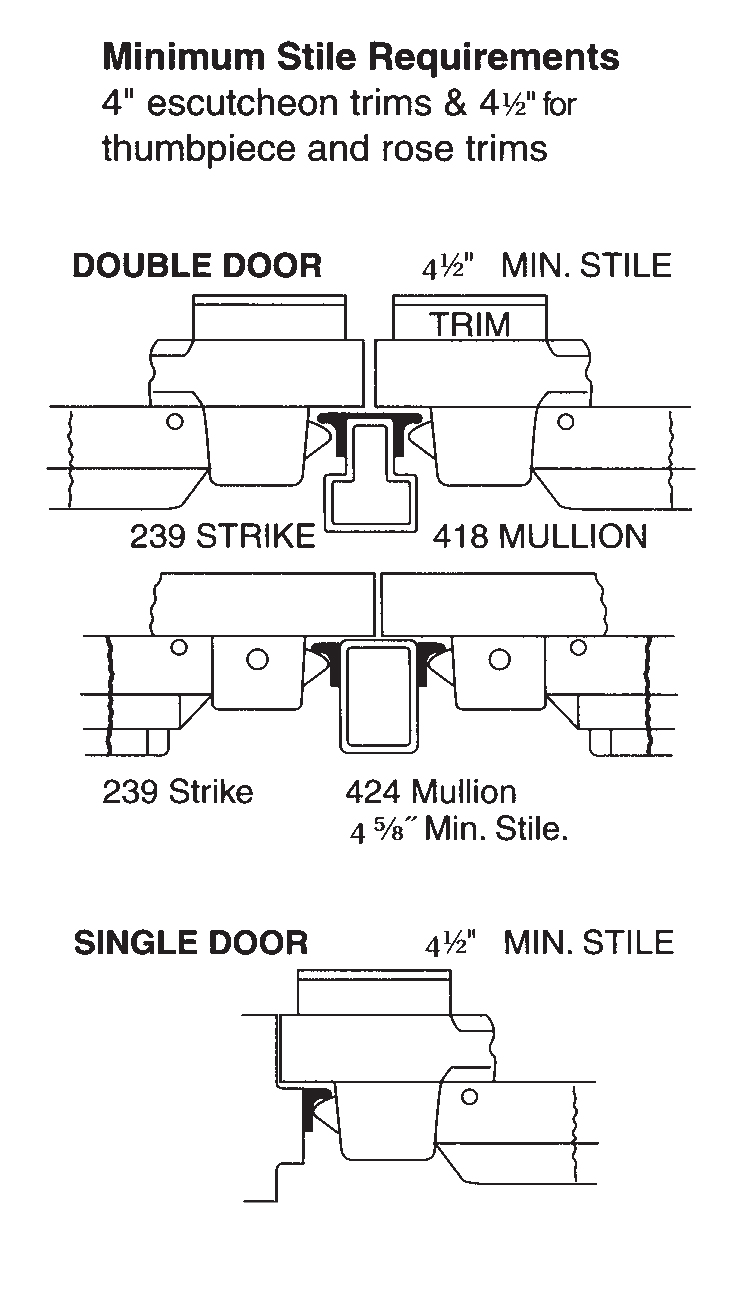

13/4" thick standard optional 21/4" thick. 41/2" minimum stile width required for signle or double door application using standard 239 strike and pull or lever trims. |
|
Chassis |
Nonferrous alloy (Panic Grade), steel (Fire Grade). |
|
Cover |
Drawn stainless steel, steel, or brass. Cover stock hollow metal doors with 161 cutout. |
|
Mounting |
Furnished standard with wood and machine screws. Available with thru bolts on request. |
|
End Cap |
Steel construction. |
|
Alarm |
Available. See page . |
|
Hand |
Non handed, center hub. |
|
Latch Bolt |
Stainless steel 3/4" throw. |
|
Spring |
Stainless steel throughout. |
|
ANSI standard |
A156.3, Grade 1. |
|
Rail Assembly |
Heavy gauge steel, painted. |
|
Strike |
239 packed atandard (see strike page). |
|
Dogging Feature |
Allen-type key furnished standard on non-fire labeled devices. Cylinder dogging available. |
|
Mullion |
Available. |
|
UL and ULC Listed |
6000 Series for panic. 9000 Series for fire exit hardware for all types of 4’ x 8’ single doors and 8’ x 8’ double doors for up to 3 hours fire labeled installations, conforms to standards UL 10C and UBC 7-2-1997 codes. |
|
Finish |
Architectural plated finish. See page 20. |
|
Door size |
32" / 36" / 48" |
Dimensions
|
Touchbar height to finished floor |
41"(1043mm) at center |
|
Touchbar projection |
2 1/2"(64mm) |
|
Center case |
8 1/8x2 3/4X 2(216mm x 63.5mm x 52mm) |
|
Device length - Short 3'(914mm) |
2'9"x3'(840mm to 914mm) door size |
