1000 / 4000 Series

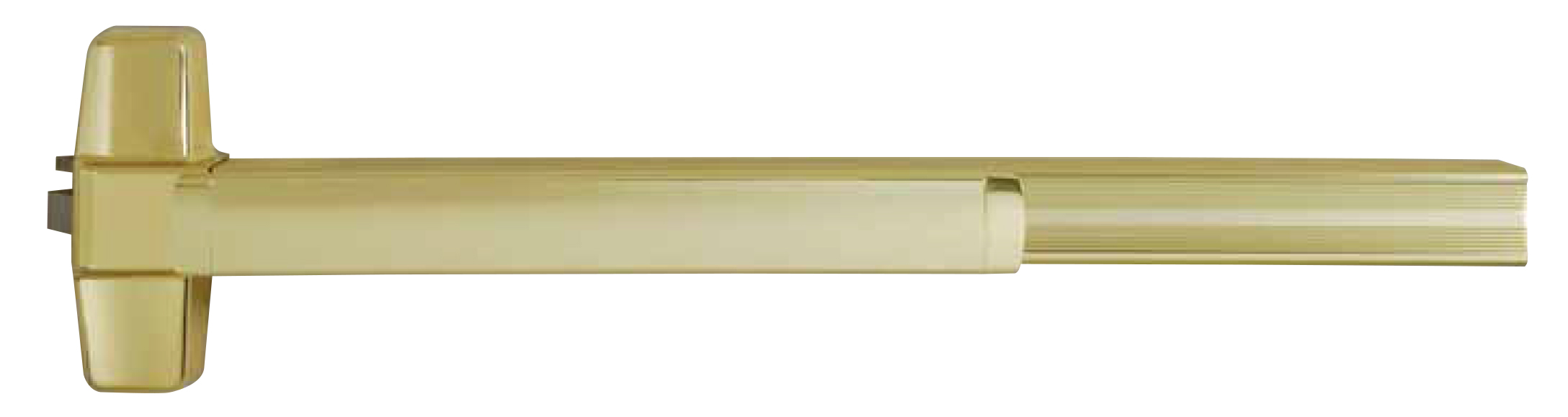

1000/4000 (9900 & F9900) Panic & Fire Rim Type Exit Devices

1100/4100 (9960 & F9960) Vertical Rod Panic & Fire Exit Devices

ANSI A156.3, Grade 1

 C7 1

Features & Construction

  • For use in institutions, schools, universities, commercial buildings where heavy duty reliable operation is a reqirement.
  • ANSI A156.3, Grade 1 heavy duty exit device in surface vertical rod and rim designs.
  • Rail assemblies are heavy duty extruded aluminum body with stainless steel push pad and end caps are made of brass, bronze or stainless steel. Rail travels in direction of the door swing.
  • Trims are thru bolted for additional security.
  • Conforms & Meets ADA Regulations.
  • UL Listed for Panic and UL 10C, UBC 7-2-1997 codes.
  • UL Listed for Fire Exit Hardware. 3 hours.
  • (A) label rating on pairs of doors up to 8’0” x 8’0” swinging in same or opposite directions.
  • Uncompromising security and safety in single and double fire exit doors.
  • Chassis mounted unit construction.
  • Available in many different functions. Lever and escutcheon tirms are grade 1 construction with clutch freewheeling mechanism. Rose and escutcheon covers 161 cut out.


Suggested Architect’s Specifications

  • All exit devices shall be of touch bar design with smooth operation and be operative over 2/3 of the door’s clear opening width.
  • All exit devices must be listed under “Panic Hardware” in the Accident Equipment List of Underwriter’s Laboratories, Inc. Where labeled doors are used as exits, they must be equipped with labeled Fire Exit Hardware and UL 10C, UBC 7-2-1997 codes.
  • All springs shall be of stainless steel throughout.
  • All exit devices shall be of chassis mounted unit construction.
  • All exit device shall be ANSI A156.3, Grade 1.
